Data Security White Paper

Summary

A core feature of BOBcloud's Cloud Backup Suite is the focus on data confidentiality and security, achieved using the most secure encryption methods and standards. By default, all your data is encrypted on your device before any data is transferred to the cloud. The encryption password is not transmitted to your cloud account, which prevents it from being read or modified by a third party.

Along with strong data protection capabilities, we provide our Resellers with tools for easy encryption key management — protecting encryption keys from loss, corruption, and unauthorised access — and the recovery of encryption keys.

What is Data Encryption?

Data Encryption is the process of completely re-writing a file using an algorithm so that the data is obscured and cannot be read unless a secret key or password is provided to decrypt the data back into its original form.

How BOBcloud Uses Encryption to Protect Your Data

Data encryption protects the confidentiality and security of data during backup, transit, rest, and restore.

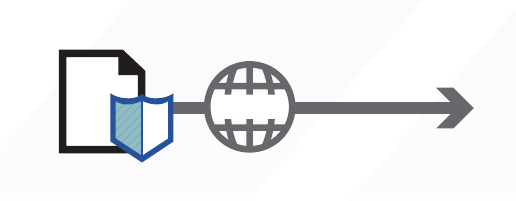

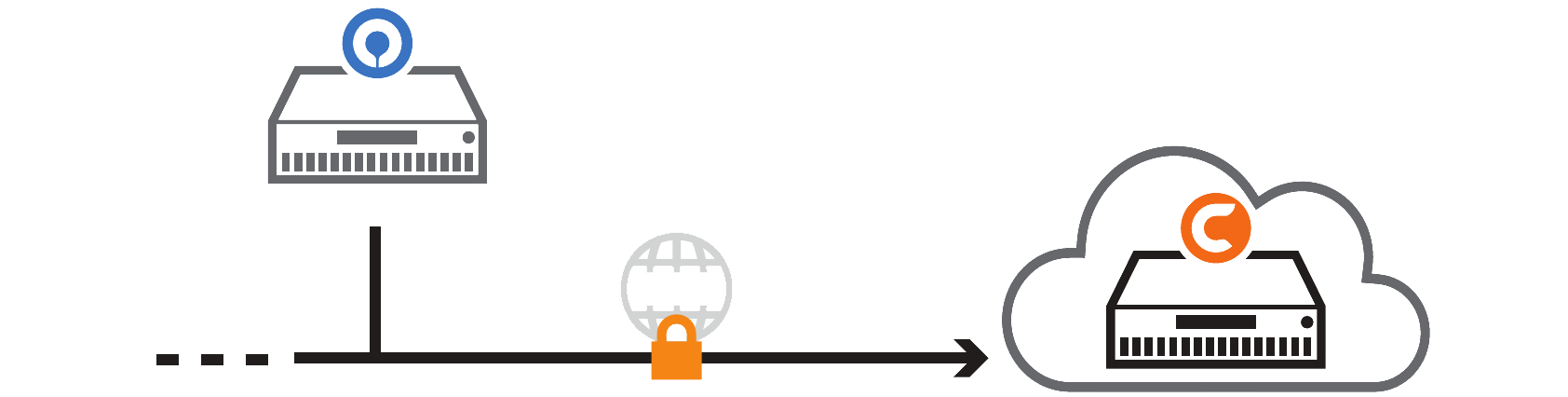

1. When data is transmitted via the Internet or other networks during backup, restore, or replication:

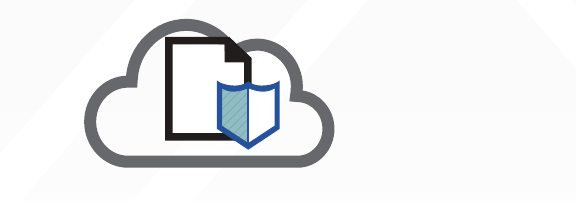

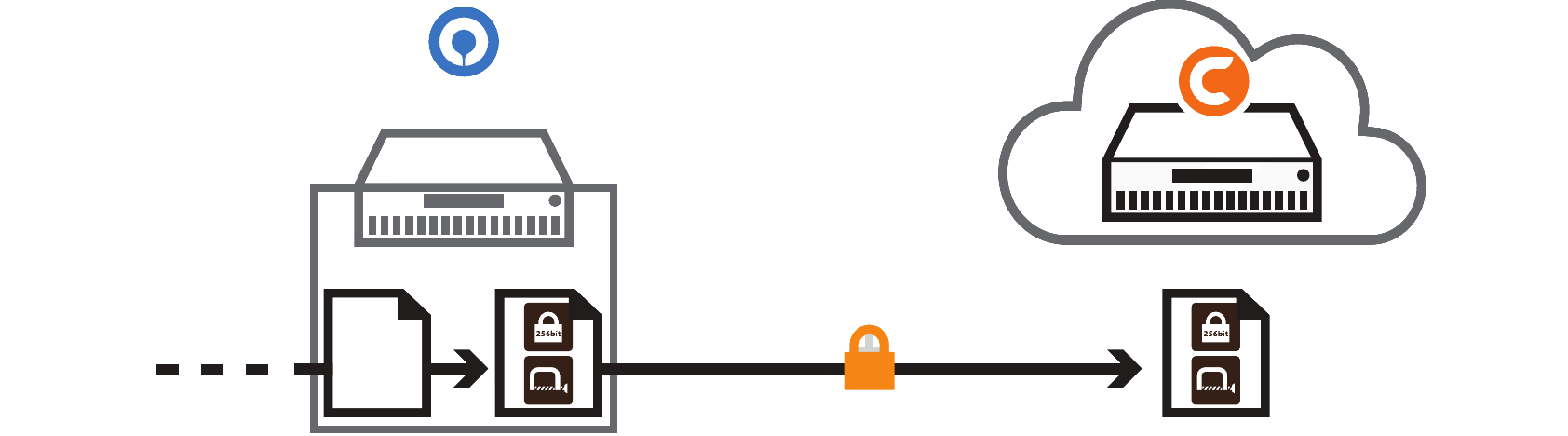

2. When data is stored in the backup destination — on the cloud or a Reseller's own platform:

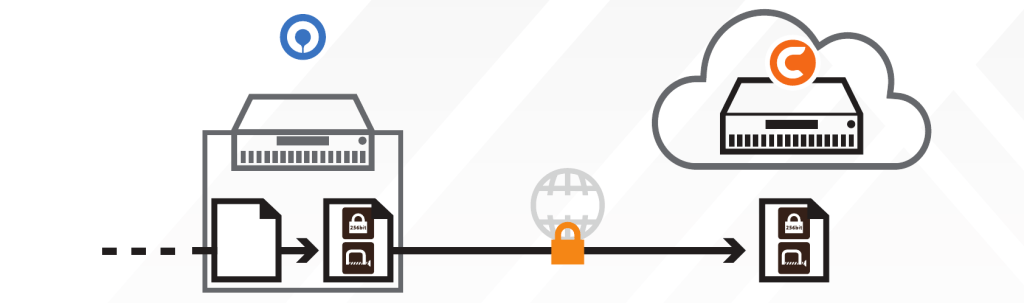

All files are encrypted before they are transmitted to backup storage. If data is intercepted during transfer or at rest, it is useless — the backup data is stored in an encrypted format that cannot be decrypted without the correct key.

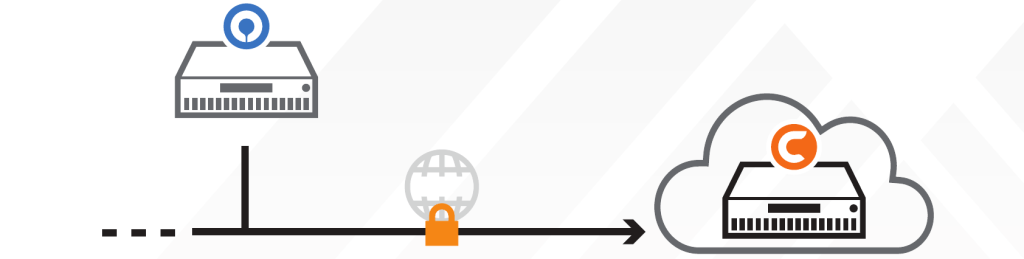

SSL / TLS Encryption in Transit

All communications between the Server and Desktop backup agents and the BOBcloud server or public cloud storage are via a 256-bit SSL (Secure Socket Layer) channel using TLS v1.2 protocol. Authentication parameters and encrypted files are further encrypted within the SSL channel — providing a double layer of protection during transit.

Encryption Algorithm

BOBcloud provides three encryption algorithm options. AES is the default we set.

Algorithm	Protection Level	Recommended Use
AES (default)	Highest	Sensitive data, financial records, commercial secrets
Twofish	High	General business data
DESede	Standard	Less sensitive data where performance is prioritised

Two encryption methods are also available: ECB (Electronic Codebook) and CBC (Cipher Block Chaining). Our default is CBC 256-bit — the industry-standard AES algorithm approved by the US government for securing top-secret information.

Can AES-256 Be Cracked?

Given enough time and processing power, any known encryption algorithm can theoretically be cracked using a brute force attack. AES-256 has 2²⁵⁶ possible key combinations — a number that exceeds the number of atoms in the observable universe.

Even with El Capitan — one of the world's fastest supercomputers at 1,742 petaflops — cracking AES-256 remains computationally infeasible. This makes AES-256 one of the most secure encryption methods currently available.

Encryption Key Types

BOBcloud offers three options for generating the encryption key, depending on the customer's required security level:

Type	Key Strength	Encryption Level
Default	Randomly generated 44-character string (A–Z, a–z, 0–9, special chars)	AES 256-bit CBC
User password	Dependent on login password complexity	AES 256-bit CBC
Custom	Dependent on client preference	Client preference

Where is the Encryption Key Stored?

The encryption key is stored in a special file (settings.sys) encrypted using AES-256, on the machine where the backup agent is installed.

OS	Server Agent	Desktop Agent
Windows	%USERPROFILE%\.Server\config	%USERPROFILE%\.Desktop\config
Linux / Unix	/root/.Server/config	—
macOS	/Users/%username%/.Server/config	/Users/%username%/.Desktop/config
Synology NAS	/volume1/@appstore/BOBcloudServer/.Server/config	—

When Do I Need to Enter My Encryption Key?

• The original machine has suffered a fatal failure and you need to install the agent on a new machine to restore files.
• When accessing a backup set originally created on another machine.
• The .server or .desktop folder on the machine has been deleted.
• The settings.sys file has been accidentally deleted or corrupted.
• When using BOBcloud to restore files on behalf of a client (Service Providers only).

Encryption Key Best Practices

• Do not use an encryption key containing personal information (name, birthday, login name, abc123, etc.)
• The encryption key should be at least 8 characters long.
• Use both uppercase (A–Z) and lowercase (a–z) characters, numbers (0–9), and special characters (+/-\=@#$%^&*()).
• Keep a written copy of the encryption key stored securely off-site. Without the correct key, your data cannot be recovered.

Encryption Key Management Options

	Partner/MSP Managed	Client Managed
Storage	Key stored in AES-256 encrypted file on the BOBcloud server. BOBcloud staff cannot access this password.	Only the client knows the encryption key.
Recovery	Keys can be recovered by contacting BOBcloud. We open a request with Ahsay and they send the password directly to the customer.	If the key is lost or forgotten, the backup data is lost forever.
Security Level	High	Highest

Self-Service Encryption Key Recovery

If a client loses their encryption key, BOBcloud can request recovery via the Ahsay Self-Service Encryption Key Recovery Service. Requirements:

• A valid maintenance contract.
• BOBcloud Server / Desktop must be on v9 or above.
• The "Upload encryption key after running backup for recovery" setting must be enabled.
• The "Encryption Recovery" option must be enabled on the backup client.
• The client must have successfully uploaded encryption key details after a backup job.
• The contact email address in the backup user account must be valid.
